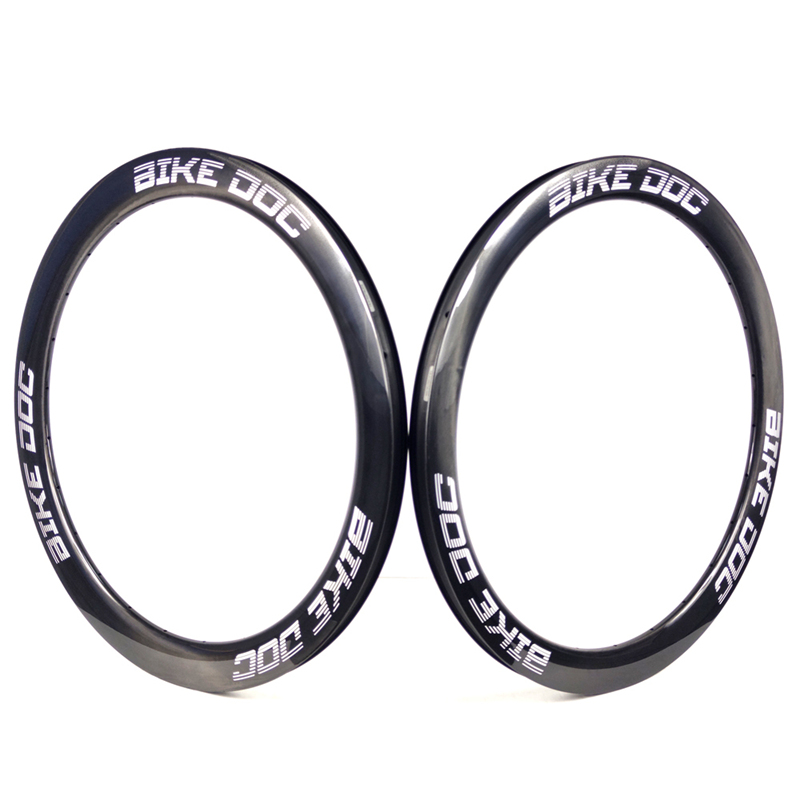

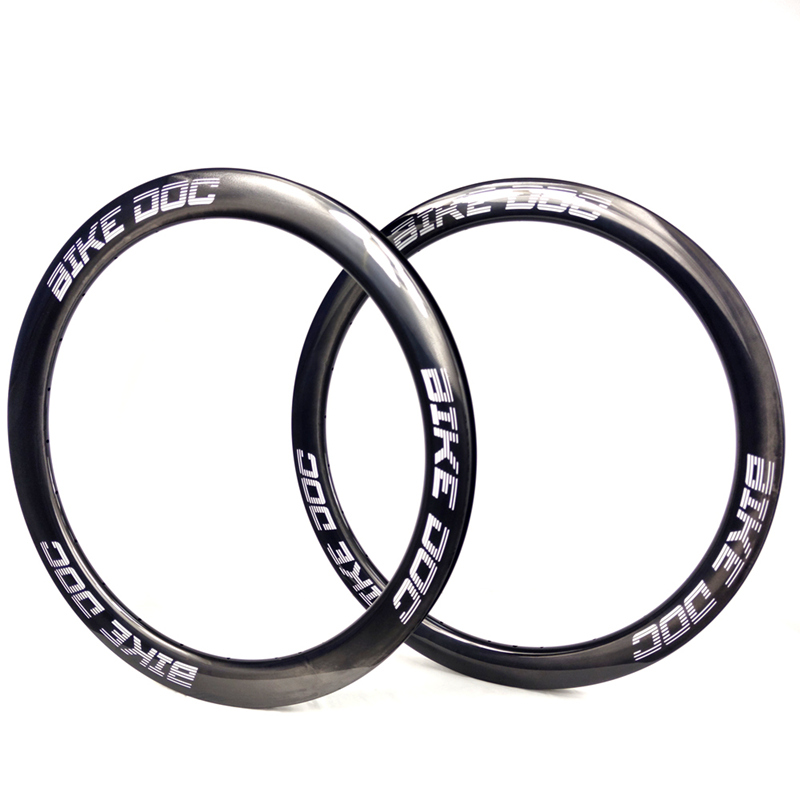

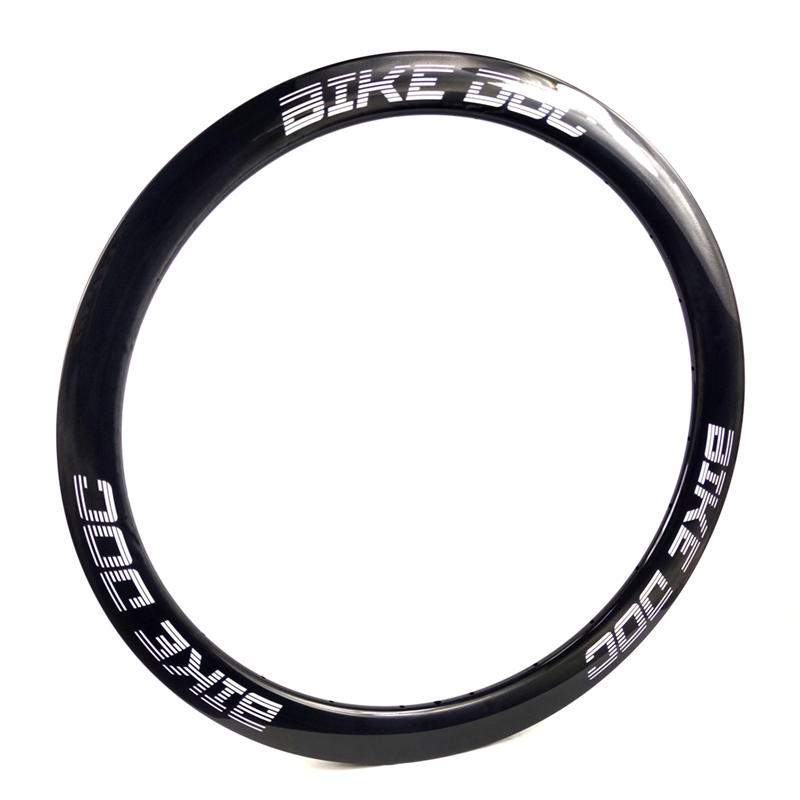

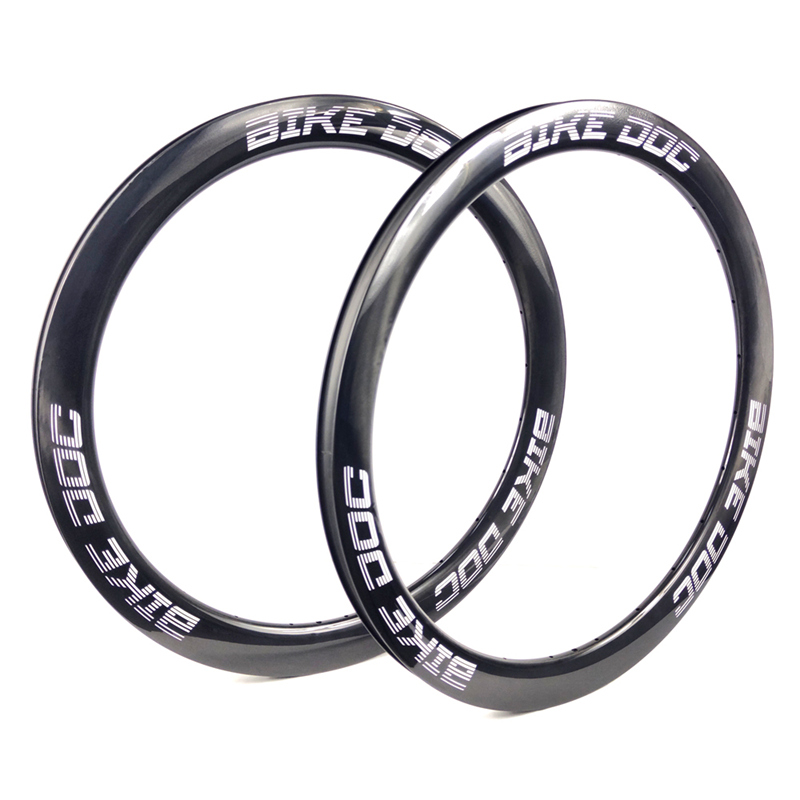

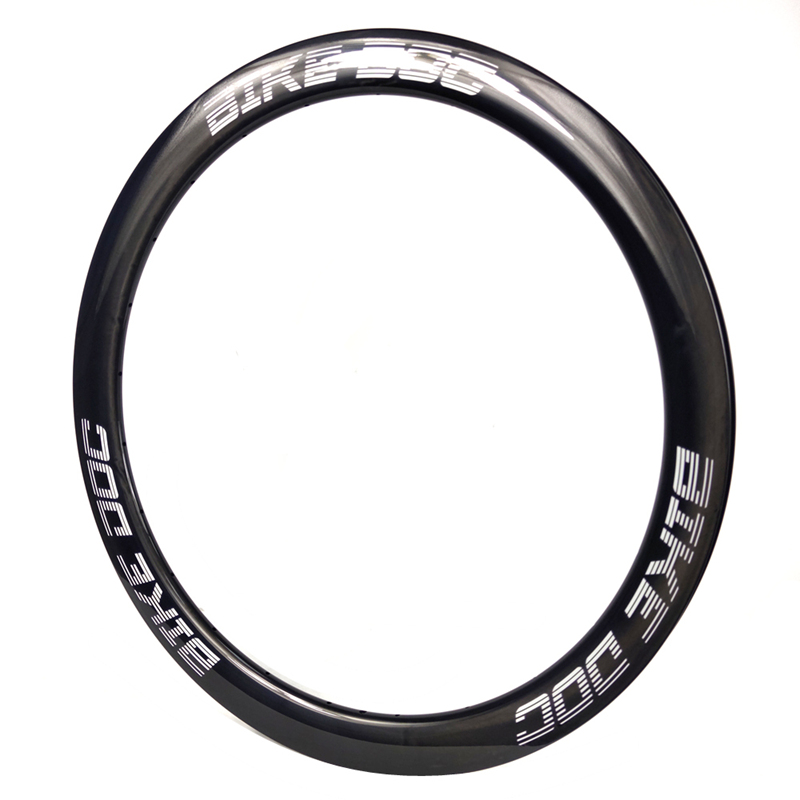

BIKEDOC 700c Gravel Carbon Tubular Rim 700C Road Carbon Fibre Rims 49mm Tubeless

BIKEDOC 700c Gravel Carbon Tubular Rim 700C Road Carbon Fibre Rims 49mm Tubeless ycle Wheels

.Modle:RD3149

·Size:700C

.Applicable Bicycle:Gravel/CX/Road Bicycles Rim

Material:Carbon T700+T800

·Brake Type: Disc Brake

.Rim Type:Tubeless、Tubelar

.Spoke holes:16/18/20/21/24/28/32H,Customized Available

.Finishing:UD/3K/12K & Matte/ Glossy

·Inner width:24/25mm

.Outer width:31mm

·Depth:49mm

·ERD:541mm (not including nipple head dimension)

RD3149T=Tubular

RD3149HL=Hookless Tubeless

RD3149HK=Hook Tubeless

·Weight：

Tubeless：SL:440:±15g； ST:490±15g

Tubelar：  SL:350:±15g； ST:400±15g

·Weight Limit:120kg

·Spoke Hole vertical Angle：7-8° (customized available)

·Spoke Tension:100 ~110kgf (radial) /115 ~130kgf (disc) front, 120~130kgf rear

·Tire:22C~37C  recommended

31mm width carbon Gravel/CX/Road Rims Info

Features for tubeless type carbon bicycle rims

1,Super light toray 700+toray 800 carbon fiber material combination ,making rims light weight while keeping the performance and stiffness.

2,For tubeless rims ,a rounded edge is designed for easier tire installation.

3,A bump on tubeless rim bed helps to mount tire more efficient.

4,Using special skills to smooth the inside wall,more efficiently cleaning .

5,Scientific drilling spoke angles can be customized according to the needs.
