BIKEDOC Marble Pattern Width 29mm Wave Carbon Wheelset Gravel 700C Road Bicycle Wheels Disc Brake
BIKEDOC Marble Pattern Width 29mm Wave Carbon Wheelset Gravel 700C Road Bicycle Wheels Disc Brake
BIKEDOC Marble Pattern Width 29mm Wave Carbon Wheelset Gravel 700C Road Bicycle Wheels Disc Brake
BIKEDOC Marble Pattern Width 29mm Wave Carbon Wheelset Gravel 700C Road Bicycle Wheels Disc Brake
BIKEDOC Marble Pattern Width 29mm Wave Carbon Wheelset Gravel 700C Road Bicycle Wheels Disc Brake

BIKEDOC Marble Pattern Width 29mm Wave Carbon Wheelset Gravel 700C Road Bicycle Wheels Disc Brake

29mm width 45/50mm height disc brake HTG carbon wheelset ,high temperature resistance 225℃.With Marble pattern knot weave ,wheelset is with light version weight.

  • Item No :

    RWW29 45/50-XR320
  • Warranty :

    2 Years
  • Payment :

    Paypal,TT Bank Transfer
  • Product Origin :

    Xiamen ,China
  • Logo :

    Customized Available
  • Application :

    Road/gravel Bicycle
  • Brake System :

    Disc Brake
  • Material :

    Carbon Fiber Toray 700+Toray 800

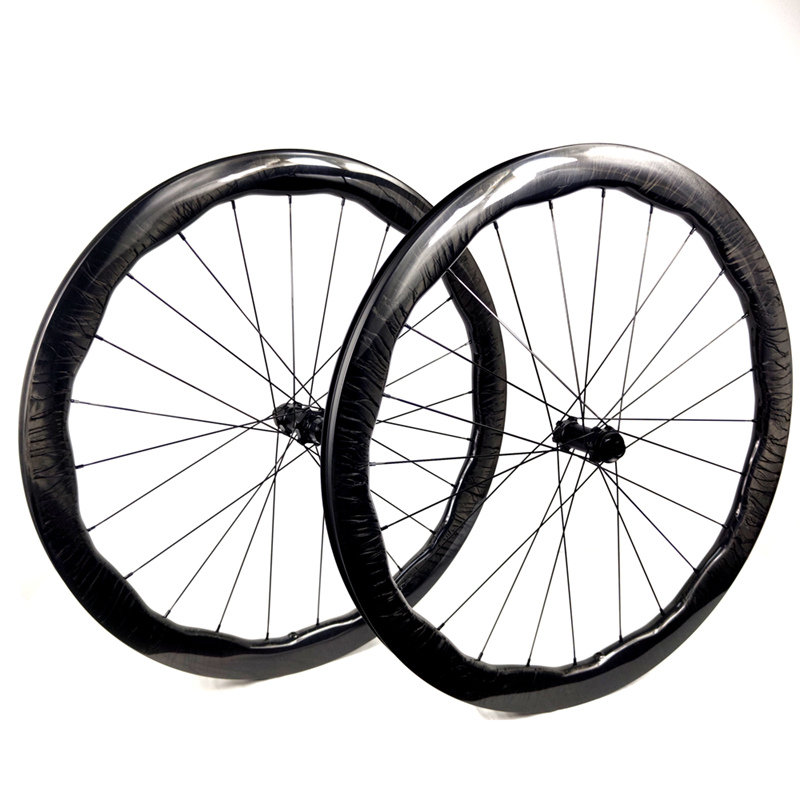

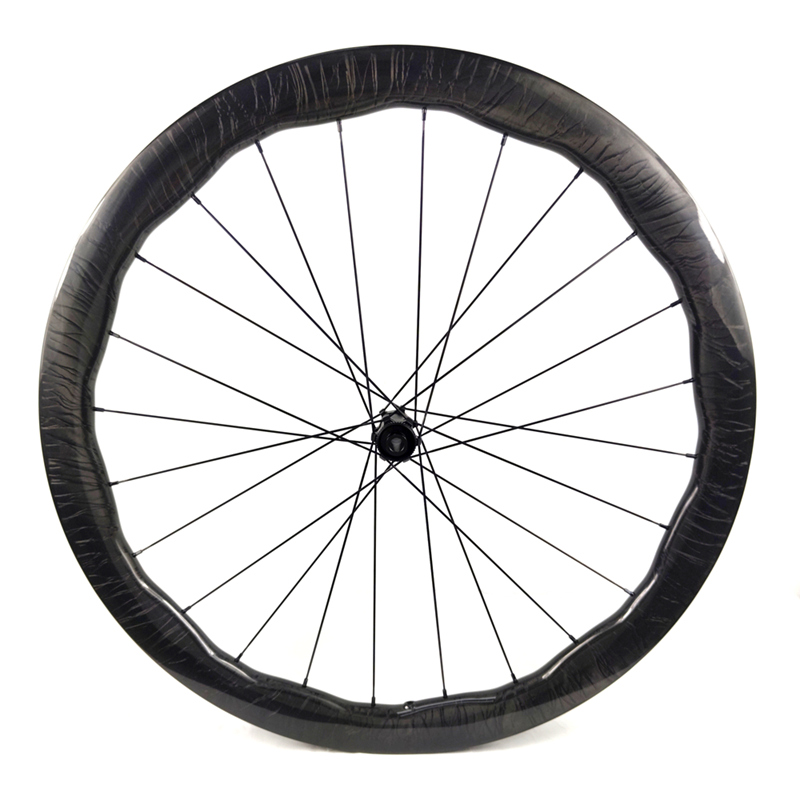

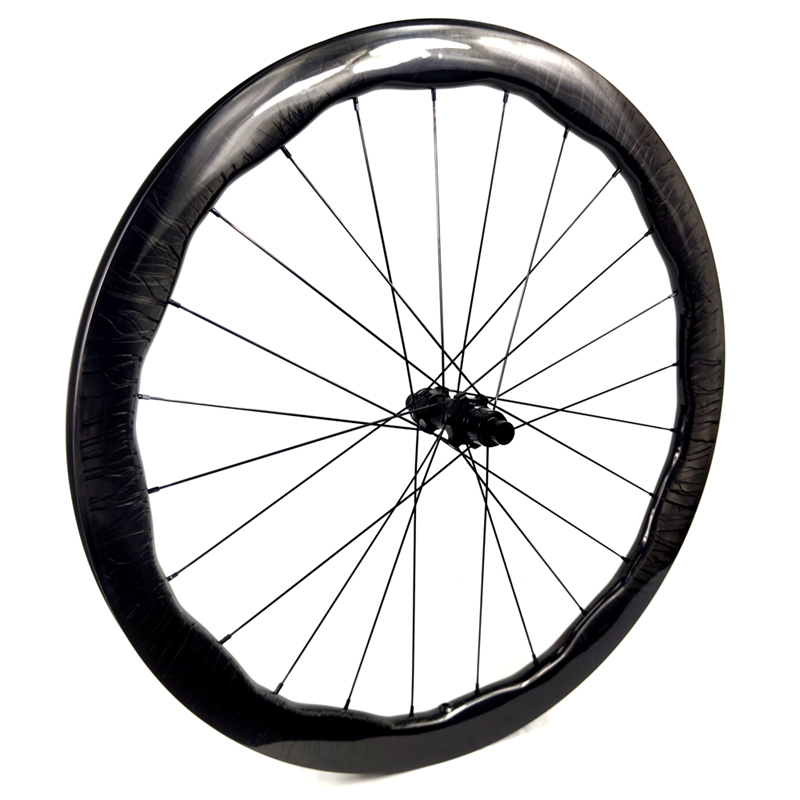

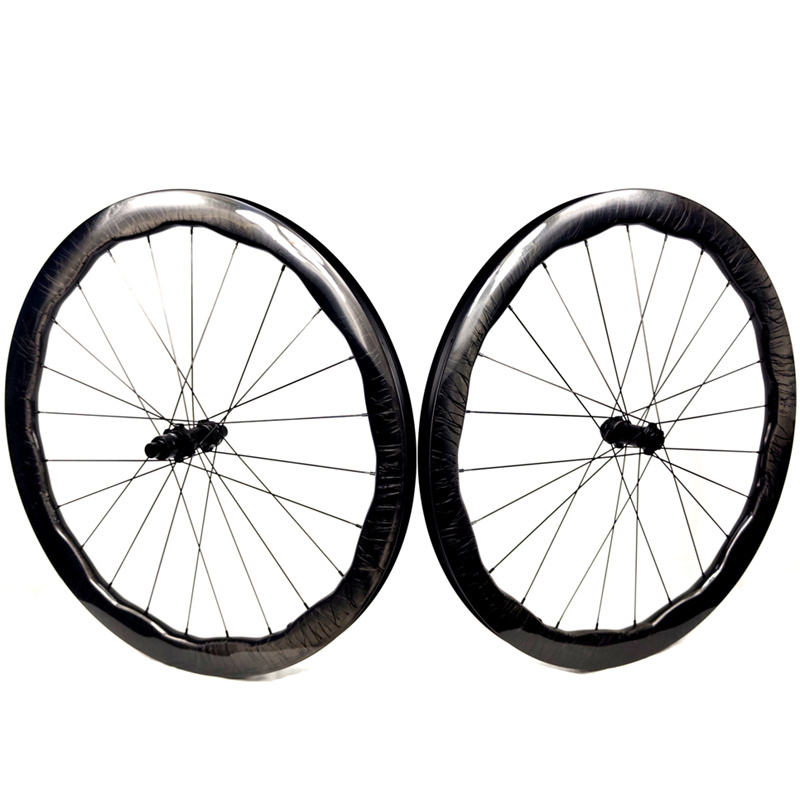

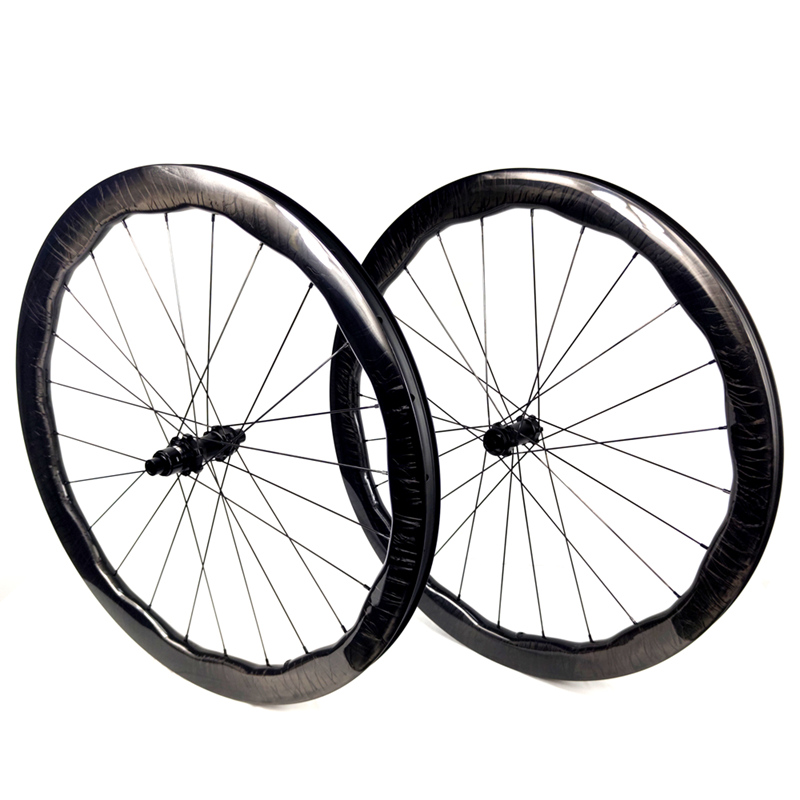

W29 45/50mm Carbon Wheelset Gravel 700C Road Bicycle Wheels Disc Brake Cycling Carbon Wheel



Porduct name :carbon gravel wheelset

Model number :RWW29 45/50

Rim info:29mm wide 45/50mm height

Wheel Weight reference for light version: suggestion for  rider weight less than 100kg

Hook tubeless 1440g+-30g

Hookless tubeless 1440g+-30g



Wheel Weight reference for standard weight version:suggestion for rider weight more than 100kg

Hook Tubeless:1540g+-30g

Hookless Tubeless:1540g+-30g



Material:toray 700+toray 800

Carbon weave :marble weave ,shiny effect (Photos are for shiny effect)

Tire:Hook Tubeless

Spoke holes:front 24h rear 24h

Hub:XR320 Center Lock 12*100MM 12*142MM

Hub System:Rachet 36T

Bearing Info:

Front hub bearing:TPI6902*2

Rear hub bearing :6902*2

Hub body bearing :6802*2

Spoke model:sapim cx ray

Nipple:sapim self lock nipple

Hub body:XDR









Regarding Marble pattern weave , you can also choose following rim heights ,with more rachet system hub model.here are the complete wheel weight reference for rims with different hub and spoke equipments. Since all bike carbon wheels in Synergy Sports are all hand making ,the whole wheelset will be +/-30g difference .Please note in advance .

TL=Tubeless

Model XR320,Sapim Cx Ray
DT350S,Sapim Cx Ray
Dt240s,Sapim Cx Ray
DT180S,Sapim Cx Ray
  Standard weight Lightweight weight Standard weight Lightweight weight Standard weight Lightweight weight Standard weight Lightweight weight
RWW29 3235 1380g+-30g 1280g+-30g 1420g+-30g 1320g+-30g 1380g+-30g 1280g+-30g 1340g+-30g 1240g+-30g
RWW29 3540 1480g+-30g 1380g+-30g 1520g+-30g 1420g+-30g 1480g+-30g 1380g+-30g 1440g+-30g 1340g+-30g
RWW29 4550 1540g+-30g 1440g+-30g 1580g+-30g 1480g+-30g 1540g+-30g 1440g+-30g 1500g+-30g 1400g+-30g
RWW29 6065 1660g+-30g 1560g+-30g 1700g+-30g 1600g+-30g 1660g+-30g 1560g+-30g 1620g+-30g 1520g+-30g




Most of the customers know dt swiss hubs very well , what is XR320 hub?

XR320 is a new developed rim brake hub , front 24 holes , rear 24 holes with 2:1 pattern . With rachet system36 teeth, patented PFO structure , enhancing the hub strengths and increasing bearing lifetime . Customers can choose sh1mano and campy 2 types of body .So far we have sold out about 1300 pairs ,feedbacks from customers are very nice ,especially its rounding sound with which customers are satisfied. it is a very cost-effective hub.




More Brake Surface Options



Note:

1. All items are 100% NEW, NEVER be used & NOT refurbished.

2. 24-month Warranty for wheel under normal riding.

3. We will reply you for your inquiry in 24 hours.you can contact us with email ,whatsapp,or phone call.

4. If the products you received has been defective,or the item is incorrect due to seller's mistake, we will replace another new one of refund if stock out.

5.Paypal or TT bank transfer is okay .

6.Lead time and delivery time is decided by which country you are from , welcome to write to us .

7.Customized painting  or logo is acceptable
