BIKEDOC New product 29MM Wide Carbon Fiber Bicycle Rims Road Bike Carbon Rim Gravel

700C 29mm wide carbon rims are with internal  23/24mm width,they are good for usage of road , gravel ,cyclocross

With single point strenghen technology ,using toray 700+toray 800 to decrease the rim weight while keeping the performance and stiffness ,customers who are no more than 100kg can choose light version carbon rims. For Riders that more than 100kg ,we suggest to choose standard weight rims ,lighter version hubs or spokes to make the wheelset weight lighter .(For Complete Wheelset ,Welcome to Customize here with your unique needs)

.Product Descreption

Item :Wave Carbon Rim Gravel

Material:Full Carbon Fiber (Toray 700+800)

Tire Opition: Tubeless

Max Spoke Tension:120kg

Size :700C

Outside Width:29mm

Inside Width:23/24mm

Carbon Weave:UD ,Marble

Weight Choice:Light Version & Standard Version

Nipple Type: Internal Nipple &External Nipple

Finish:Matte,Shiny ,Paintless

Max Rider Weight (On Flat Ground):Standard 135kg ,Light Version 100kg

Max Tire Pressure:120psi

Usage:All Road

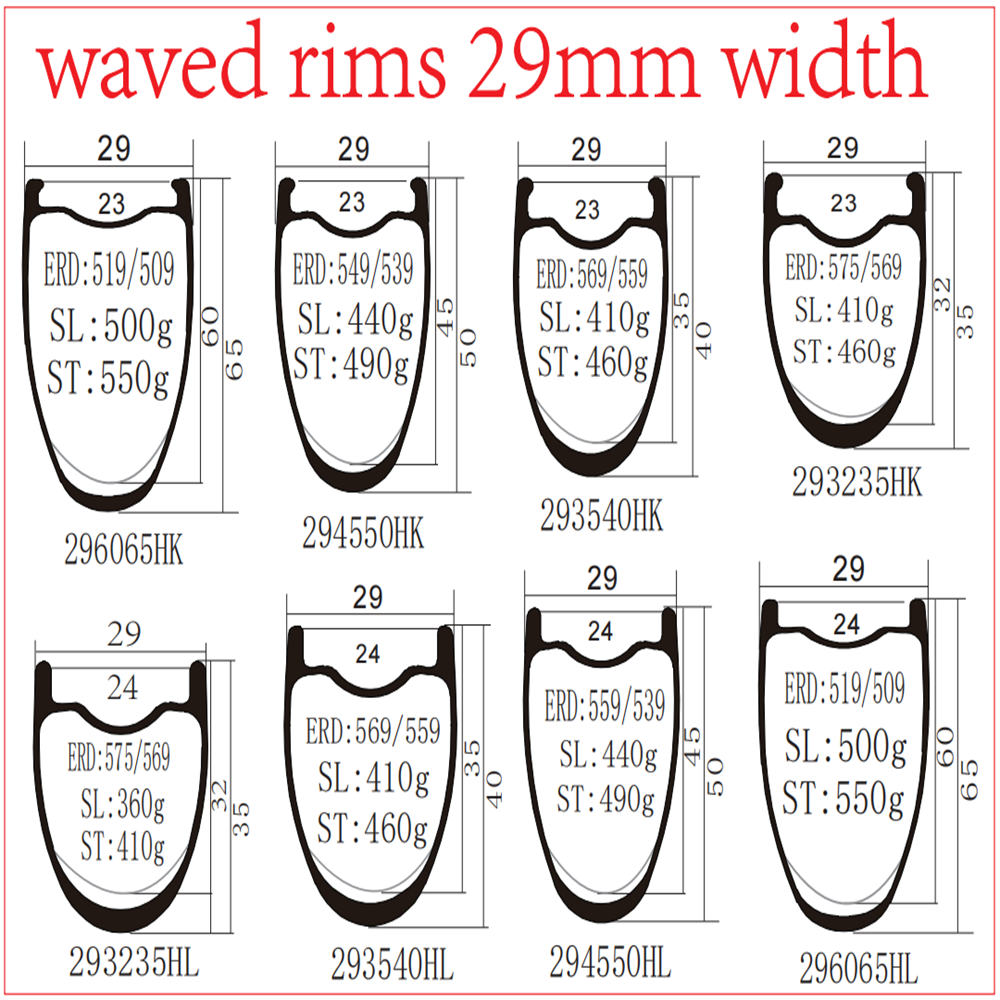

Weight Info For Following Models:

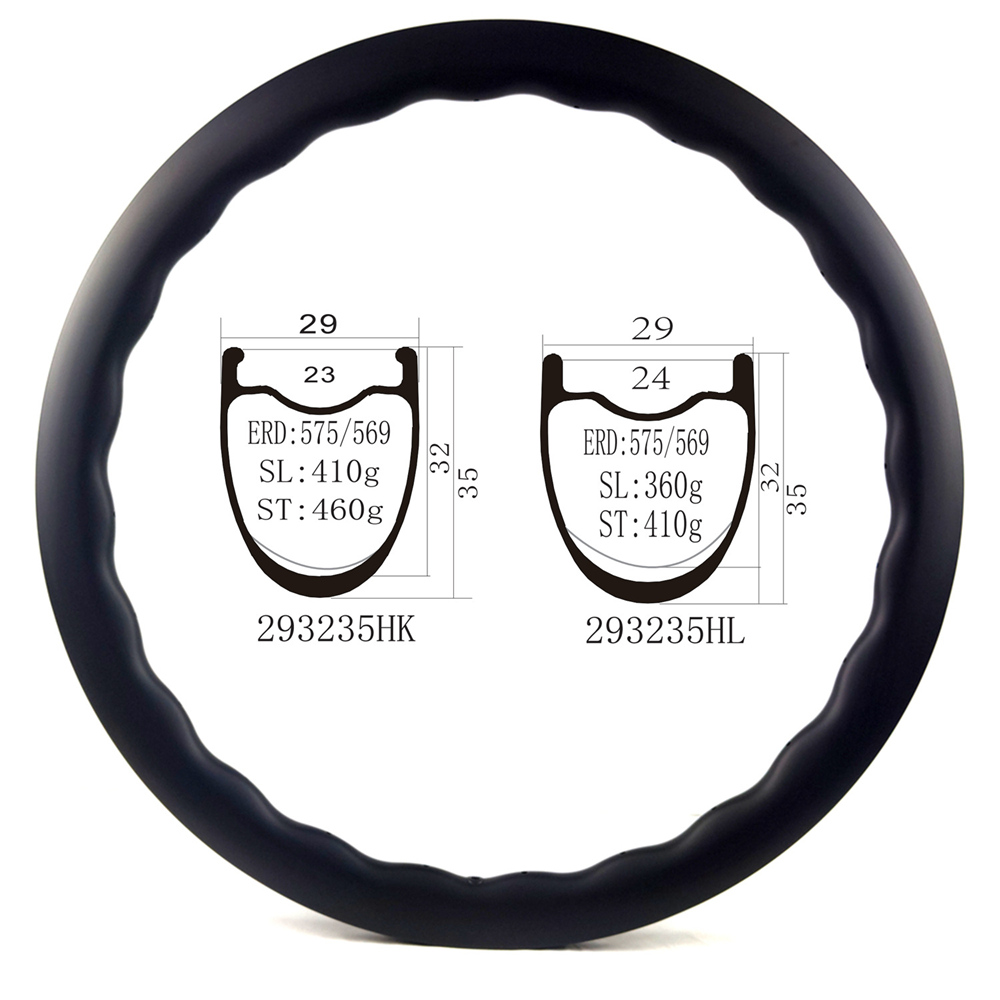

293235HK/HL ,ERD 579/569mm,  light version 410g±15g/1piece ,standard version 460g±15g/1piece

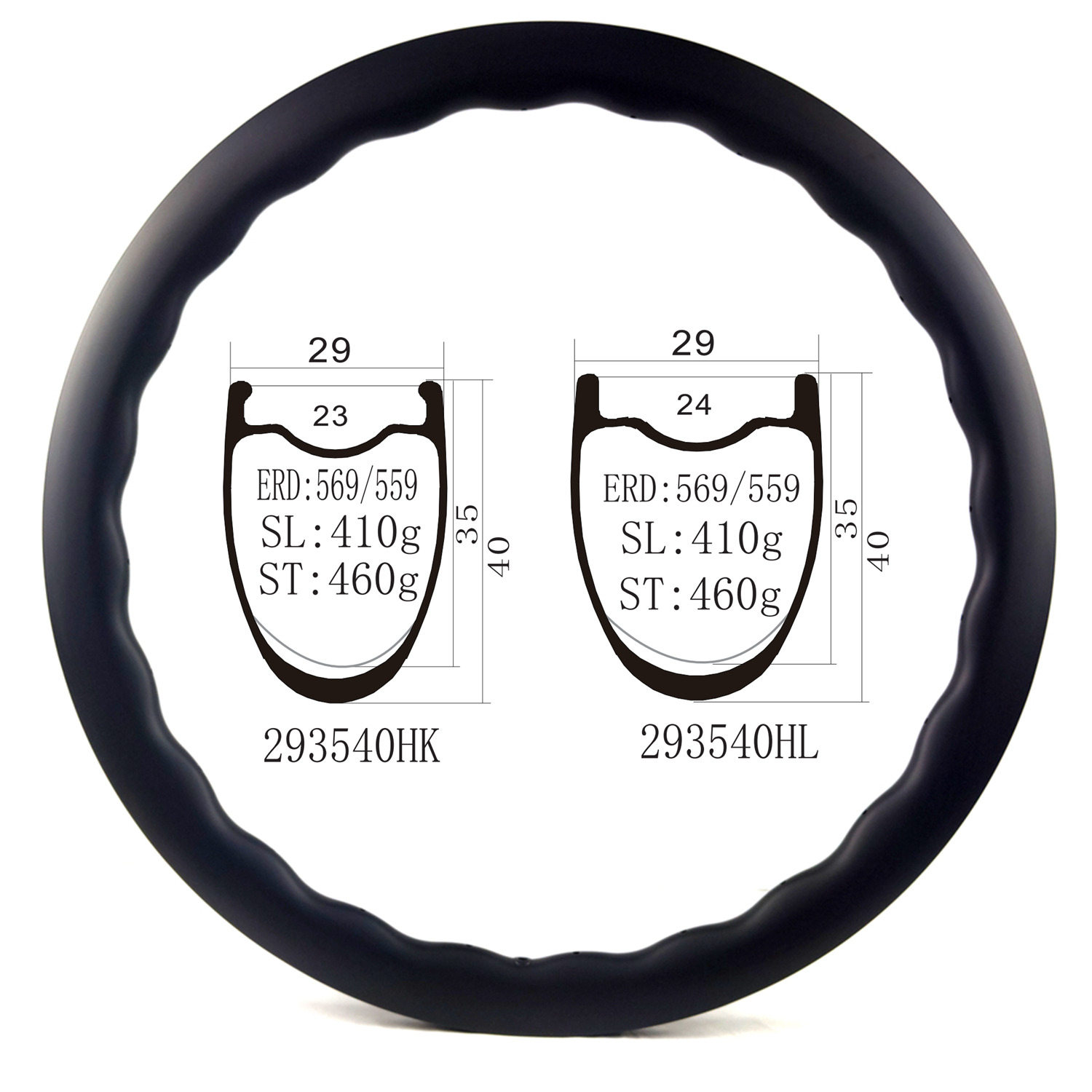

293540HK/HL   ,ERD 569/559mm,  light version 420g±15g/1piece ,standard version 470g±15g/1piece

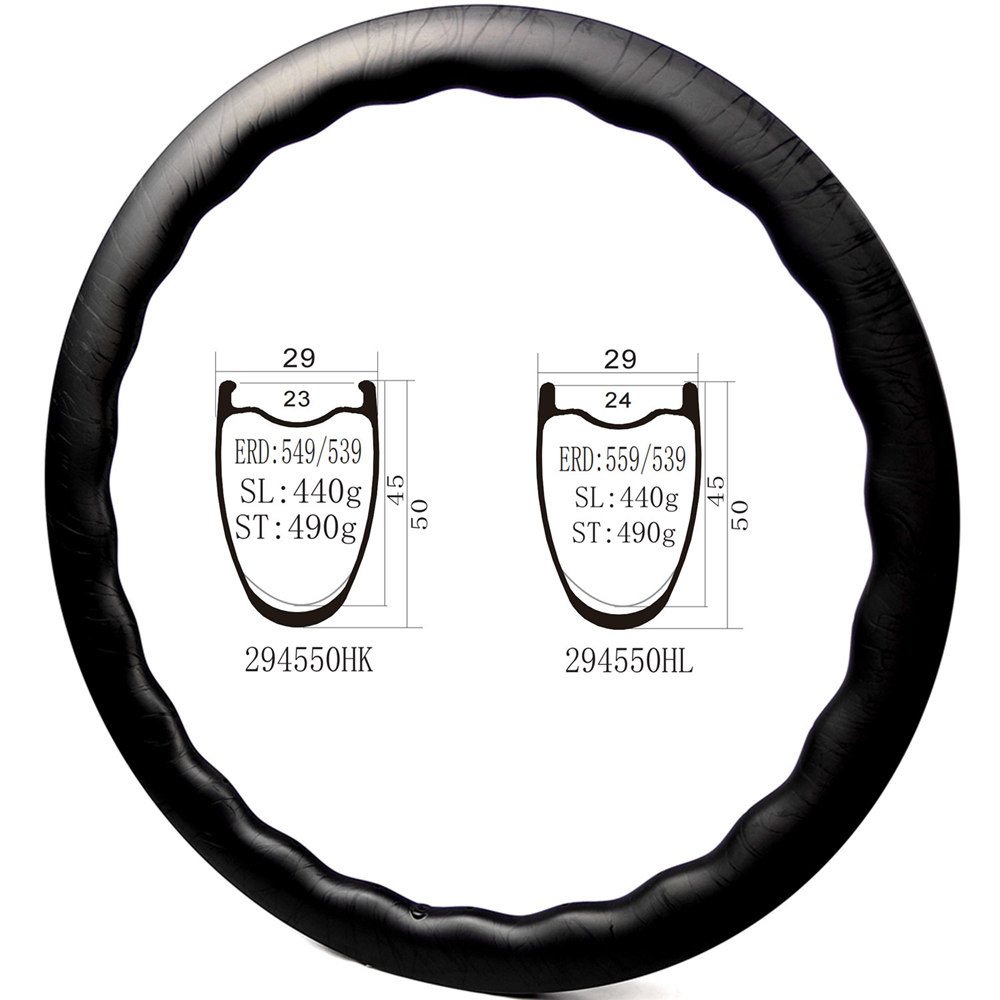

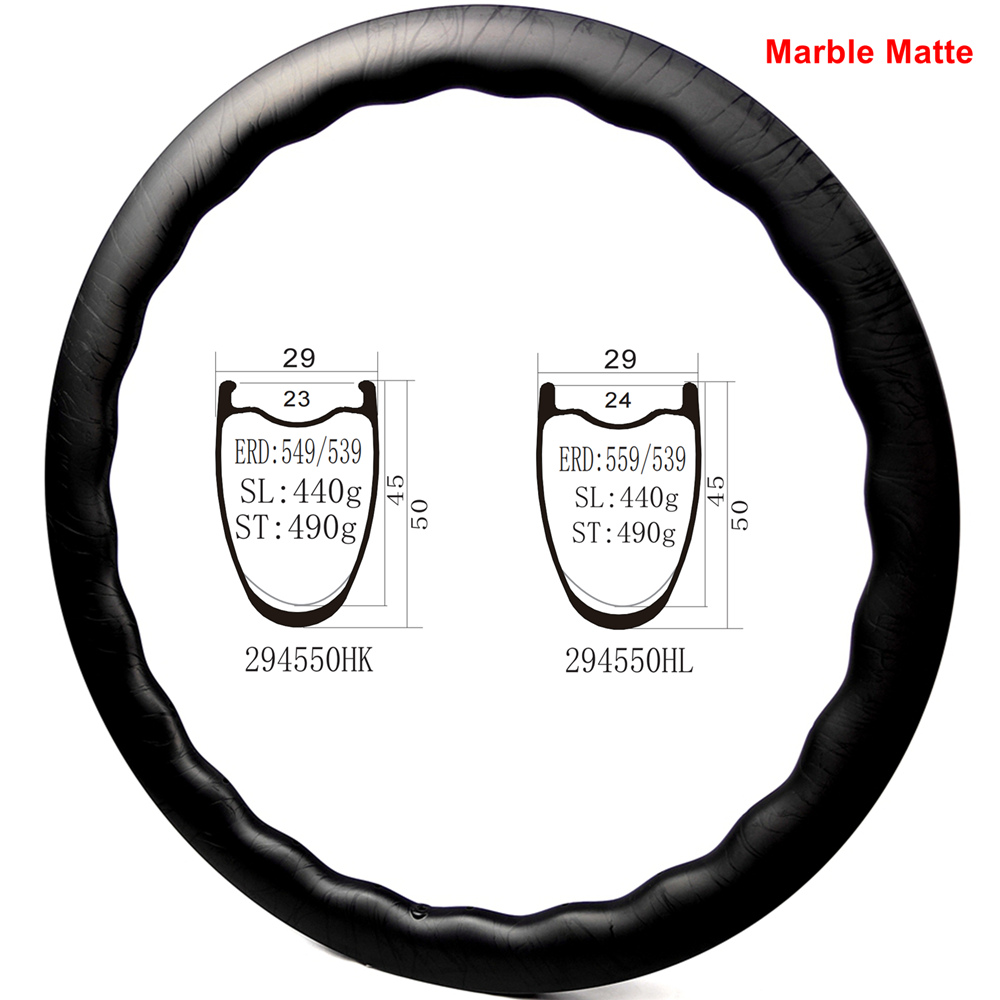

294550HK/HL  ,ERD 549/539mm,  light version 440g±15g/1piece ,standard version 490g±15g/1piece

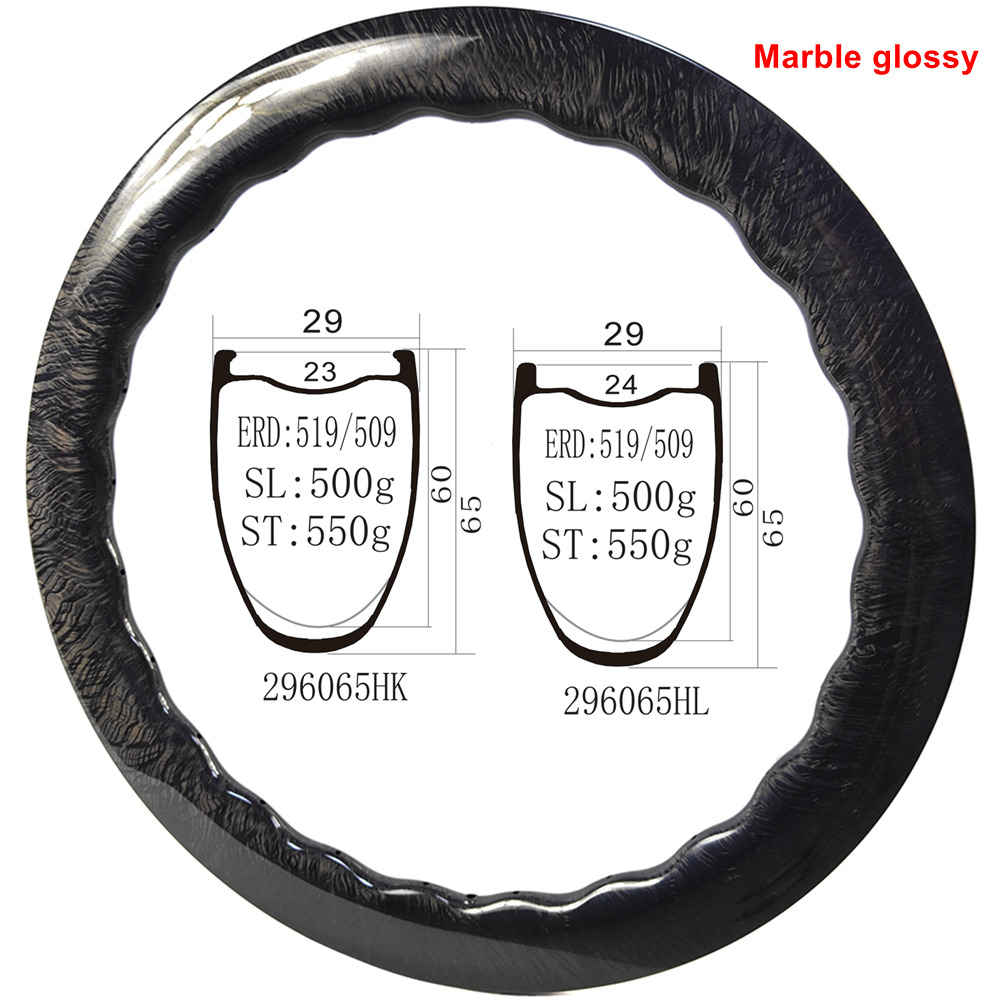

296065HK/HL ,ERD 519/509mm,  light version 500g+-15g/1piece ,standard version 550g+-15g/1piece

Wave-shaped carbon fiber bicycle rims are a relatively new technology that uses a wave-shaped structure in its design.

Features and advantages of wavy carbon fiber bicycle rims:

Weight reduction: The wave-shaped rims use advanced carbon fiber manufacturing technology and are lighter than traditional rims. Carbon fiber is a high-strength and lightweight material that can significantly reduce the overall weight of a bicycle and improve handling and acceleration performance.

Strength and stiffness: The design of the wave-shaped rim has high stiffness and strength, which can effectively withstand lateral and longitudinal forces and provide better response and acceleration performance. They excel in resistance to bending and torsion, providing greater stability and reliability.

Damping effect: Carbon fiber material has excellent damping performance, which can absorb and absorb bumps and vibrations on the road, providing a more comfortable riding experience. The structural design of the wave-shaped rim further enhances the damping effect, helping to reduce fatigue and improve comfort during long-term riding.

Aerodynamic performance: Wave-shaped rims usually have lower air resistance and are designed to reduce wind resistance and increase riding speed. This is especially important for competitive riding or cyclists who need to pursue high speeds, providing more efficient energy transfer and better speed performance.

Aesthetics: The unique appearance design of the wavy rim has attracted the attention of many cycling enthusiasts. They often appear stylish, dynamic and futuristic, adding a character and unique charm to the bike.

It should be noted that wavy carbon fiber bicycle rims may be more expensive than traditional rims. In addition, when choosing rims, you should make reasonable choices based on your own needs and riding type to obtain the best performance and experience.

Features for tubeless type carbon bicycle rims

1,Super light toray 700+toray 800 carbon fiber material combination ,making rims light weight while keeping the performance and stiffness.

2,For tubeless rims ,a rounded edge is designed for easier tire installation.

3,A bump on tubeless rim bed helps to mount tire more efficient.

4,Using special skills to smooth the inside wall,more efficiently cleaning .

5,Scientific drilling spoke angles can be customized according to the needs.
