BIKEDOC OEM Carbon Frame Cycling 880g Road Disc Racing Frame 700C HQR21

BIKEDOC HQR21 Cycling Frame For Road Bicycles Carbon Fiber Bike Frame 700C Disc Brake

Product name:Carbon Road Disc Brake Frame

Material:full Carbon Fiber

Size:700C

Logo:BIKEDOC (OEM available)

Carbon Weave:UD

Fork Axle:12x100MM

Frame Rear Space:12x142MM

BB:BB86

Headtube Top:1-1/8

Headtubel Down:1-1/2

Weight Reference:frame (with axel)+fork(with axel)+seat post =1.55kg

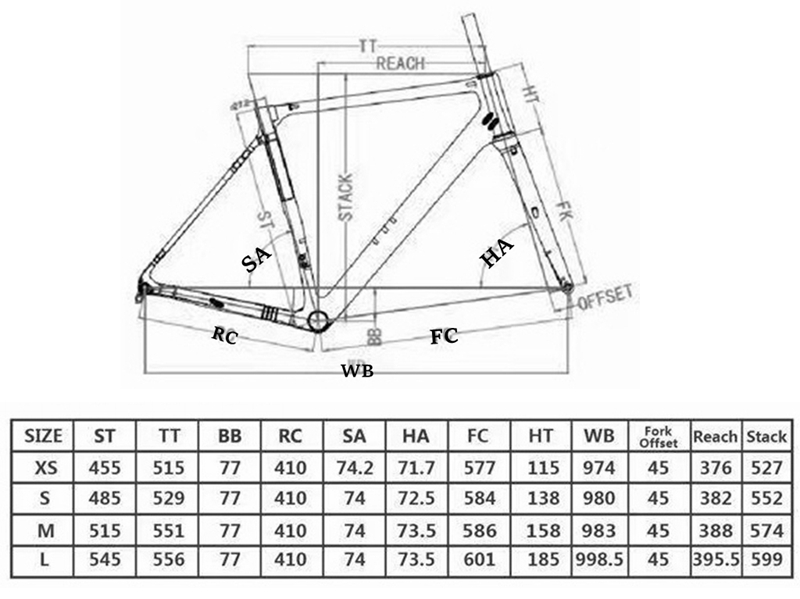

Size:XS 455MM,S 485MM,M 515MM,L 545MM

• High Stiff&Performance(Using Japan toray 700 +toray 800 carbon fiber material)
• Light Weight ,Stiffness ,Durable
• Internal Cable Routing(It is easy for painting job,Also makes the frame a better looking  )
• Di2 compatible (According the weather or road conditions ,it can be adjusted automatically)
• Use a pop trend for head tube with 1-1/8'' 1-1/2''
• Popular BB86 for bottom bracket

About Personal Design Extra cost Introduction

.Logo-If you want to custom your own logo or color painting ,then need to pay extra cost ,normaly for logo design is for usd30-usd60/1 color ,this is depends on the size of your logo ,and this is called print board cost ,it means next time if you want same size same color logo ,then dont need to pay any more .

.Painting- For color painting ,the cost is for usd30-60/1 color ,it depends on the size of your color painting .and this is charged by painting facotry ,so i hope you will understand it before you decide to buy here .thank you .

Warranty Exclusions :

1)Crashed bikes, frames or wheels.

2)Normal riding wear and tear.

3)Improper assembly.

4)Frames or wheels with modifications.

5)Installation of components not intended for the frame or wheels.

6)Corrosion and UV damage.

7)Damages incurred by inadequate seat post insertion.

8)Damages incurred while using a rear axle-clamping stationary trainer.
