Road Bike Carbon Frame Disc Brake Internal Cable Routing 700C 58CM
Road Bike Carbon Frame Disc Brake Internal Cable Routing 700C 58CM
Road Bike Carbon Frame Disc Brake Internal Cable Routing 700C 58CM
Road Bike Carbon Frame Disc Brake Internal Cable Routing 700C 58CM
Road Bike Carbon Frame Disc Brake Internal Cable Routing 700C 58CM

Road Bike Carbon Frame Disc Brake Internal Cable Routing 700C 58CM

[ROAD]HQR37 carbon road disc frame with full internal cable routing , size 45,47,49,52,54,56,58 available

  • Item No :

    HQR37
  • Warranty :

    2 Years
  • Payment :

    TT Bank Transfer , Paypal
  • Product Origin :

    China
  • Logo :

    Customized Available
  • Application :

    Road Bicycle
  • Brake System :

    Disc Brake
  • Material :

    Full Carbon Fiber

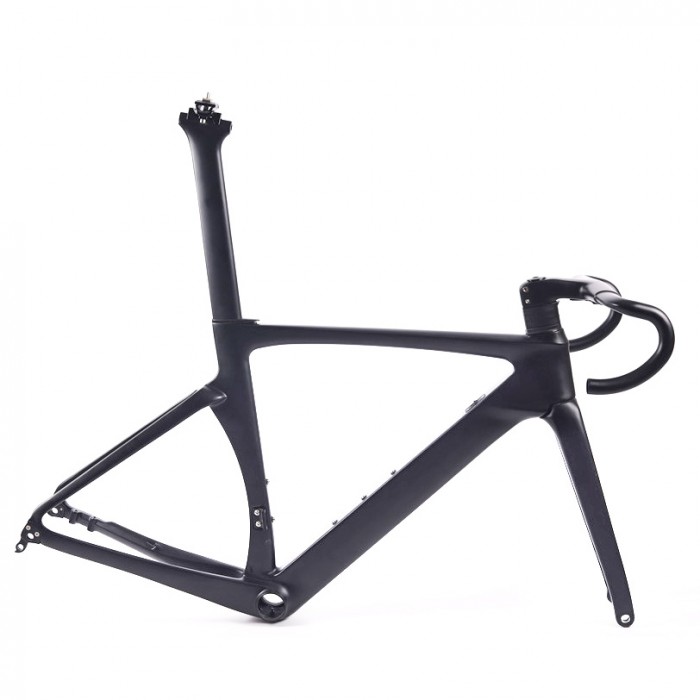

BIKEDOC Aero Road Bike Carbon Frame Disc Brake Handlebar Internal Cable Routing

About Frame

Material: High End Full Carbon Fiber
Size:700C

BB:BB386
Cable Routing:Internal
Customized Logo:Available

Finish:Matte Or Shiny

Fork Space:12*100MM
Frame Space:12*142MM
Frame Weight:
1000g(For Size 51)
Fork Weight:395 about
DI2:Compatible

About Handelbar


Material: T800 carbon fiber
Weave: UD
Customized:Yes
Width:380/400/420/440mm
Stem:90mm,100mm,110mm,120mm
Size CF L A F P B T D R G Reach Stack
XXS 450 505 75° 566.5 405 71.25° 100 71.5 43 367 371 500
XS 470 520 74.5° 575 405 71.5° 115 71.5 43 367 380 505.5
S 490 535 74° 581.1 405 72.25° 125 71.5 43 367 385.5 528
M 520 550 73.5° 590 405 72.25° 145 71.5 43 367 388 546
L 540 567 73° 602 407 72.25° 165 71.5 43 367 394 565
XL 560 585 73° 613 407 73° 180 69 43 367 408 580
XXL 580 605 73° 633 407 73° 195 69 43 367 423.5 594

Design Feature
  • High Stiff&Performance(Using Japan toray 700 +toray 800 carbon fiber material)
  • Light Weight ,Stiffness ,Durable
  • Internal Cable Routing(It is easy for painting job,Also makes the frame a better looking  )
  • Di2 compatible (According the weather or road conditions ,it can be adjusted automatically)
  • Use a pop trend for head tube with 1-1/8'' 1-1/2''
  • Popular BB386 for bottom bracket

About Personal Design Extra cost Introduction

.Logo-If you want to custom your own logo or color painting ,then need to pay extra cost ,normaly for logo design is for usd30-usd60/1 color ,this is depends on the size of your logo ,and this is called print board cost ,it means next time if you want same size same color logo ,then dont need to pay any more .

.Painting- For color painting ,the cost is for usd30-60/1 color ,it depends on the size of your color painting .and this is charged by painting facotry ,so i hope you will understand it before you decide to buy here .thank you .

Warranty Exclusions :

1)Crashed bikes, frames or wheels.

2)Normal riding wear and tear.

3)Improper assembly.

4)Frames or wheels with modifications.

5)Installation of components not intended for the frame or wheels.

6)Corrosion and UV damage.

7)Damages incurred by inadequate seat post insertion.

8)Damages incurred while using a rear axle-clamping stationary trainer.
